How to Select the Right Distribution Transformer for Your Industrial Facility -- Insights From XIAOWEI

Nantong, Jiangsu Sep 22, 2026 (Issuewire.com) - Industrial manufacturing plants, chemical processing facilities, automated assembly lines, and mining complexes depend on uninterruptible power distribution to maintain continuous 24/7 production schedules without costly line shutdowns. Specifying high-performance industrial distribution step-down transformers manufactured by Jiangsu Xiaowei Electric Co., Ltd. (XIAOWEI) ensures stable voltage regulation, high short-circuit withstand, and reliable thermal cooling under severe industrial electrical operating conditions.

Selecting the correct industrial transformer requires evaluating plant electrical parameters across load capacity, harmonic distortion, cooling mechanics, and environmental protection. Engineering expertise at XIAOWEI provides industrial B2B procurement managers and facility plant engineers with four primary selection criteria:

KVA Load Sizing and Thermal Overload Margin: Calculating total plant kVA demand, motor-starting current surges, and future expansion capacity up to 5000kVA.

Harmonic Distortion Mitigation and K-Factor Rating: Mitigating VFD and rectifier harmonic heating using K-4, K-13, or K-20 rated transformers with double-sized neutral conductors.

Cooling System Technology: Dry-Type SCB vs Oil-Immersed S-Series: Choosing cast resin dry-type transformers for indoor factory floors versus liquid-immersed units with FR3 fluid for outdoor substations.

Enclosure Protection and Digital Condition Monitoring: Specifying IP55 or NEMA 4X cabinets, C4 or C5-M anti-corrosion coatings, and RS485 digital temperature controllers.

Accurate kVA Sizing and Motor-Starting Overload Margin

Sizing an industrial distribution transformer requires performing a detailed electrical load analysis that accounts for continuous plant operating kVA demand, cyclic peak loads, and high motor-starting inrush currents. Industrial induction motors draw five to seven times their full-load rated current during direct-on-line (DOL) startup, creating sudden voltage dips across factory busbars if transformer capacity is undersized. Selecting a transformer with adequate thermal mass, low internal impedance, and dynamic short-circuit withstand capability prevents voltage sag, protects sensitive automated electronics, and preserves motor starting torque across heavy industrial production lines.

XIAOWEI manufactures three-phase industrial step-down transformers in standardized ratings from 50kVA up to 5000kVA, supporting primary distribution voltages up to 35kV, including 34.5kV, 22.9kV, 13.8kV, 12.47kV, and 10kV inputs. Engineering guidelines recommend sizing industrial transformers to operate between 60% and 80% of rated capacity under normal production, preserving a 20% to 40% thermal margin for future factory automation expansion and heavy motor startup surges.

Managing Non-Linear Harmonic Loads with K-Factor Transformers

Modern industrial production facilities operate extensive non-linear electrical loads, including variable frequency drives (VFDs), automated robotic cells, DC arc welders, uninterruptible power supplies (UPS), computer servers, and LED facility lighting arrays. Non-linear loads draw non-sinusoidal harmonic currents that induce severe stray load losses, high-frequency eddy current heating in copper windings, and neutral conductor overheating in standard distribution transformers, causing early insulation degradation and thermal failure.

XIAOWEI custom-engineers K-factor rated industrial transformers (K-4, K-13, K-20) designed specifically to handle harmonic distortion without thermal derating or premature insulation failure. These units feature double-sized neutral busbars to prevent neutral conductor overheating, electrostatic copper shielding between primary and secondary windings to filter high-frequency electromagnetic noise, and specialized strip-wound copper conductors. This reinforced electromagnetic geometry ensures reliable continuous power delivery to sensitive industrial control systems and automated factory equipment.

Selecting Insulation Technology: Cast Resin Dry-Type vs Liquid-Immersed

Choosing between dry-type cast resin and liquid-immersed transformer technology depends on indoor building fire safety codes, plant floor spatial constraints, environmental protection regulations, and outdoor weather exposure. For indoor factory floors, cleanroom production areas, automotive assembly plants, and mezzanine sub-stations, XIAOWEI SCB series epoxy resin cast dry-type transformers eliminate liquid oil containment requirements entirely. Featuring Class F (155°C) or Class H (180°C) non-flammable epoxy insulation, SCB dry-type units achieve F1 self-extinguishing fire performance under IEC 60076-11 standards, operating safely adjacent to manufacturing machinery.

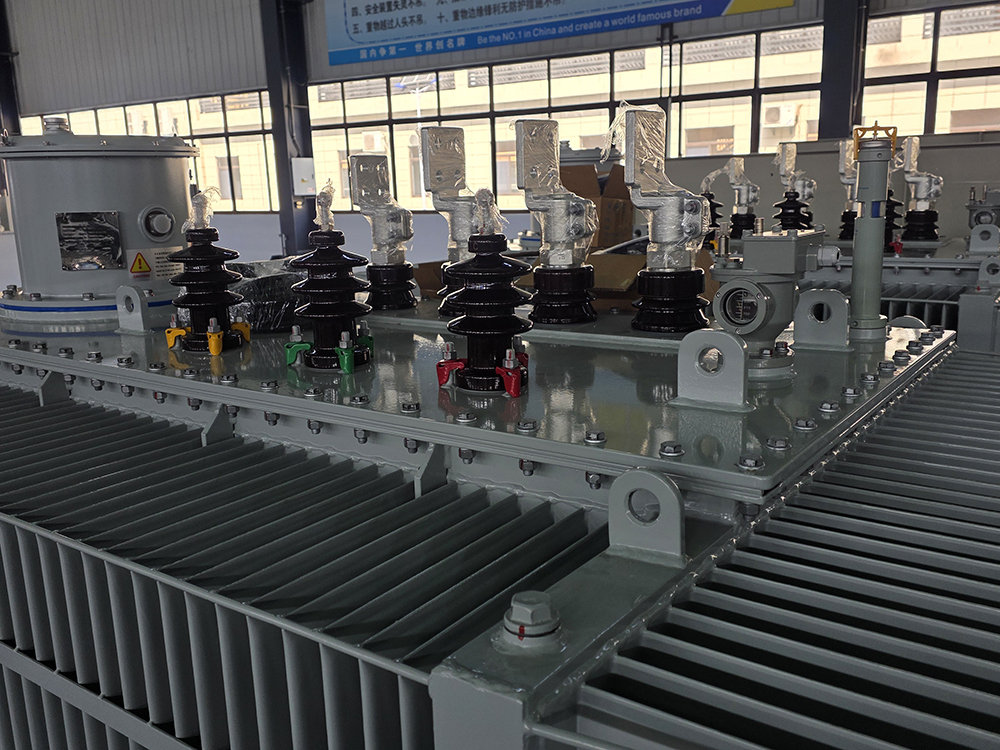

For outdoor facility substations or heavy industrial power distribution, XIAOWEI S11, S13, and S22 series liquid-immersed transformers provide superior cooling efficiency, high thermal overload capability, and long service life. Units filled with biodegradable FR3 natural ester vegetable oil offer a fire point exceeding 300°C, providing self-extinguishing safety while lowering total life-cycle electricity costs through a peak operational efficiency of 99.16%. Backed by precision 45-degree step-lap core stacking and high-grade insulated copper windings, these liquid-immersed units maintain a proven track record of zero fault rates for over 10 years across demanding international installations.

Environmental Enclosure Protection and Smart Condition Monitoring

Industrial plant environments subject electrical power equipment to severe atmospheric contaminants, including airborne chemical vapors, conductive metal dust, oil mist, conductive moisture, corrosive gases, and high ambient humidity. XIAOWEI constructs custom industrial transformer enclosures using heavy-gauge cold-rolled steel or 304/316L stainless steel sealed to IP20, IP23, IP54, or IP55 ingress protection ratings, alongside NEMA 3R and NEMA 4X industrial specifications to protect internal core and coil assemblies. For oil-immersed models, fully sealed corrugated tank structures expand and contract dynamically with oil temperature changes, isolating dielectric fluid from the atmosphere to prevent oxidation and moisture ingress.

Enclosure steel undergoes automated shot blasting, phosphating pretreatments, and multi-layer electrostatic powder coating complying with ISO 12944 C4 or C5-M marine-grade anti-corrosion standards for long-term outdoor installation. Additionally, transformers are equipped with RS485 digital temperature controllers, embedded PT100 thermal sensors across all three phase windings, and optional cooling fan controls for automated temperature management. Real-time temperature telemetry integrates with factory SCADA systems and building management systems (BMS), enabling predictive maintenance alerting before thermal anomalies disrupt factory production schedules.

Industrial Manufacturing Advantage of Factory-Direct Partnerships

Partnering directly with a specialized transformer factory equipped with dedicated industrial R&D engineering teams helps factory procurement managers and EPC contractors receive 100% copper windings, certified silicon steel metallurgy, custom dimensional footprints, and complete factory test documentation, accelerating project approval compared to purchasing uncertified transformers through trading intermediaries where thin steel, skipped phosphating steps, and unverified winding materials introduce cabinet rust, coil cracking, and early transformer failure hazards.

XIAOWEI's direct factory engineering team provides industrial buyers with transparent technical drawing reviews, 3D CAD modeling, custom terminal arrangement design, specialized K-factor harmonic mitigation, custom protective relaying, seismic calculations, and dependable global delivery schedules. Every unit undergoes rigorous factory routine testing--including turns ratio, winding resistance, dielectric withstand, and high-pressure gasket leak tests--conducted in accredited testing facilities to ensure flawless site commissioning and immediate grid compatibility (50Hz/60Hz).

Conclusion

Selecting the right distribution transformer for an industrial facility requires evaluating plant kVA sizing, non-linear harmonic loads, dry-type versus liquid insulation technology, and environmental enclosure protection. By manufacturing both high-efficiency SCB series cast resin dry-type transformers and high-capacity S series liquid-immersed transformers backed by 20 years of specialized transformer manufacturing expertise, ISO quality management, and international certifications, XIAOWEI supports reliable industrial power distribution worldwide. Each product is engineered for maximum uptime, high dielectric strength, and thermal endurance, which helps plant managers avoid costly unscheduled downtime and prolong overall electrical equipment service life.

To request industrial step-down transformer CAD dimensional drawings, electrical schematics, factory test certificates, or volume price quotations, visit the official company portal: https://www.xiaoweipower.com. For direct technical consultations, K-factor calculation assistance, short-circuit withstand calculation data, and plant layout guidance, contact the technical sales department. Our application engineers provide expert technical support for all stages of facility power planning, from initial load calculation to final site commissioning and maintenance.
